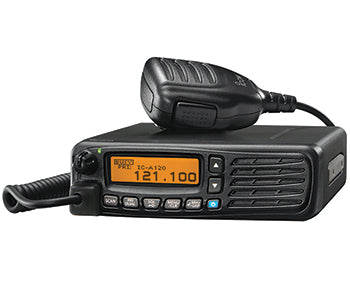

iCom, Mobile VHF Air Band Transceiver w/ Vehicle Mount, model IC-A120
The IC-A120 Mobile air band transceiver from iCom is equipped with a crisp, clear, dot-matrix display; active noise cancellation (ANC) and automatic noise limiter (ANL*) technology; and straightforward programming and settings options that are accessible from the front panel. The IC-A120 meets IP54 standards for dust-protection and water-resistance and can be connected to an optional Bluetooth® unit for compatibility with third-party wireless Bluetooth® headsets.
- Hand microphone (HM-216)
- DC power cable
- Microphone hanger kit
- Mounting bracket kit
- Fuses
Features:
- Dot-matrix LCD display is easy to read with crisp, clear text
- Memory channels and other radio settings can programmed from the front panel
- Provides 200 memory channels with 12-character channel names and 8.33 kHz and 25 kHz channel spacing
- Built-in Active Noise Canceling (ANC) reduces background noise in the received and transmitted signals
- Automatic noise limiter (ANL) reduces pulse-type noise such as engine ignition (ANL and ANC functions cannot be used at the same time)
- IP54 dust-protection and water resistant construction allows the IC-A120 to be used in open-air vehicles
- ON-Hook scan function automatically starts scanning when the hand microphone is hooked on the microphone hanger
- ON-Hook dual-watch feature checks the priority and operating channels alternatively while ON-Hook
- Provides optional Bluetooth® headset connectivity when the UT-133 Bluetooth unit is added — allowing for third-party wireless Bluetooth headsets to be used
- Third-party headsets can be used with the optional OPC-871A headset adapter
- Optional HM-217 speaker-microphone allows the user to listen to received audio through the HM-217’s built in speaker
- The speaker-microphone features up/down buttons as well as two programmable P1/P2 buttons that serve as a shortcut for activating frequently used functions
- Compatible with 12- and 24- volt systems
- 36W (PEP) RF output power
- Dualwatch and priority scan functions
- Power on password protection
- PC programming capability
- CI-V Commands for external control
- VE-PG3 RoIP gateway for interconnect with other radio devices
Dimensions: 161 x 45 x 193 mm (6.34 x 1.77 x 7.6 in)
Frequency Range: 118.000 to 136.992 MHz
Channel Spacing: 25 kHz/8.33 kHz
Type of Emission: A3E (AM)
Number of Memory Channels: 200 channels
Antenna Connector: M type (50Ω)
Power Supply Requirement: 13.75 V/27.5 VDC
Current Drain (at 13.75 VDC): Transmitting: 5.0 A max. Receiving: 4.0 A (at AF max.), 0.5 A at standby
Operating Temperature Range: -30°C to 60°C
Frequency Stability: ±5 ppm (-30°C to 60°C)
TRANSMITTER:
Output Power (at 13.75V): 9.0 watts typical (carrier power)
Modulation: 70% to 100%
Spurious Emission: Less than 60 dB (harmonics/non-harmonics, 30MHz to 1 GHz)
Microphone Impedance: 600Ω
RECEIVER:
Intermediate Frequency: 38.85 MHz/450 kHz (1st/2nd)
Sensitivity (pd): 1 µV (6 dB S/N)
Selectivity: 8.33 kHz: 2.778/7.37 kHz (6 dB/ 60 dB) 25 kHz: 8/25 kHz (6 dB/60 dB)
Spurious Response: More than 74 dBµ
Audio Output Power: 10% distortion, 60% modulation
Internal Speaker: 1.5 watt (8Ω load)
External Speaker: More than 10 watt (8Ω load)
Headphones: More than 100 mW (500Ω load)
